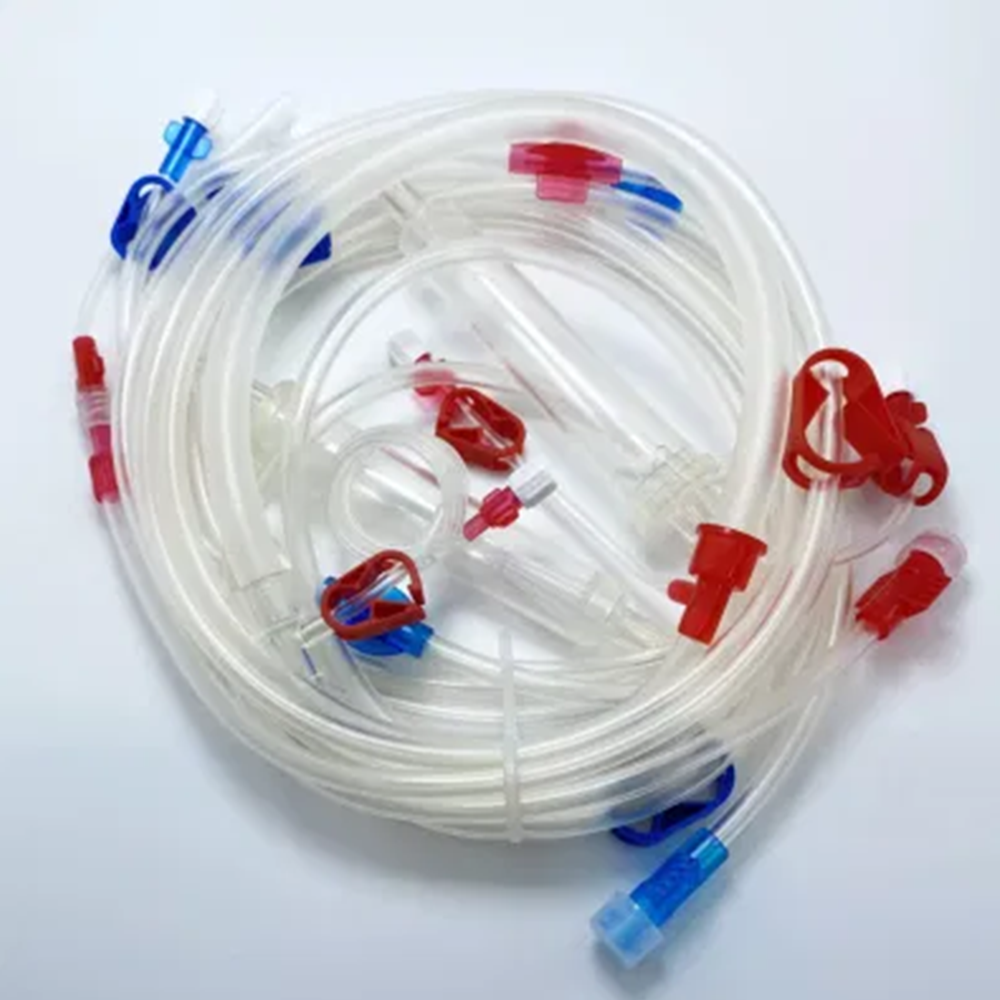

Hemodialysis Blood Line Set

What is a Hemodialysis Blood Line Set?

The blood line set (also called blood tubing set) is the connecting pathway between the dialyzer, the dialysis machine, and the patient’s vascular access (like an AV fistula or catheter). It’s a critical disposable component used during each dialysis session.

Main Functions

Carries blood from the patient to the dialyzer (via the arterial line).
Returns cleaned blood from the dialyzer back to the patient (via the venous line).
Interfaces with the dialysis machine for pressure monitoring, air detection, and heparin infusion.

Components of a Standard Blood Line Set

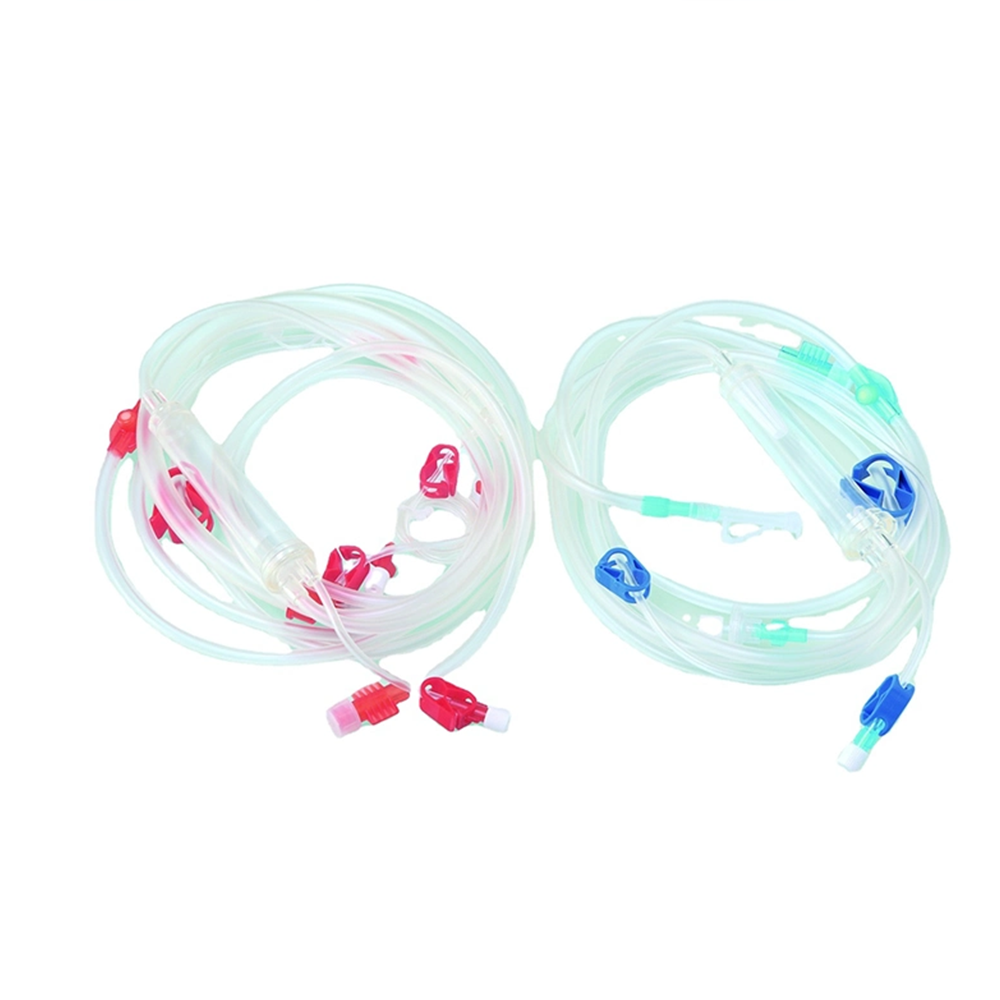

Arterial Blood Line (Red)

Connects to the arterial needle (or catheter).
Carries blood from patient to dialyzer.
Includes:
- Drip chamber (monitors blood flow & traps air)
- Sampling port (for blood samples or medication)
- Heparin port (for anticoagulant infusion)
- Pump segment (goes through the blood pump)

Venous Blood Line (Blue)

Connects to the venous needle.
Returns cleaned blood from dialyzer to patient.
Includes:
- Venous drip chamber (air trap + bubble detector)
- Venous sampling/med port
- Clamp & luer lock connector

Other Features

Sterile, single-use.
Made from PVC (polyvinyl chloride), often DEHP-free for safety.
Tubing diameter must match machine specs and blood flow rate needs.

Types of Blood Line Sets

Type	Used With	Notes
Standard HD Set	Conventional hemodialysis machines	Most common
Low Volume Set	Pediatric or low-weight patients	Minimizes extracorporeal volume
Pre-attached Set	Comes with dialyzer	Reduces setup time, contamination risk
High-Flux Compatible	High-efficiency dialyzers	Optimized for higher blood flows

Clinical Considerations

Always check for kinks, leaks, or expired sterile packaging.
Prime tubing set thoroughly to remove air before connecting to patient.
Observe arterial/venous pressure alarms, as issues may relate to tubing occlusion or misconnection.
Match tubing set to machine brand/model (e.g., Fresenius, B. Braun, Nipro, etc.).

Final Summary

A Hemodialysis Blood Line Set is a vital, sterile tubing system that safely and efficiently moves blood between the patient, machine, and dialyzer. It’s essential for:

Blood flow control
Monitoring
Anticoagulation delivery
Maintaining a closed-loop sterile system
